Functional Features：

---

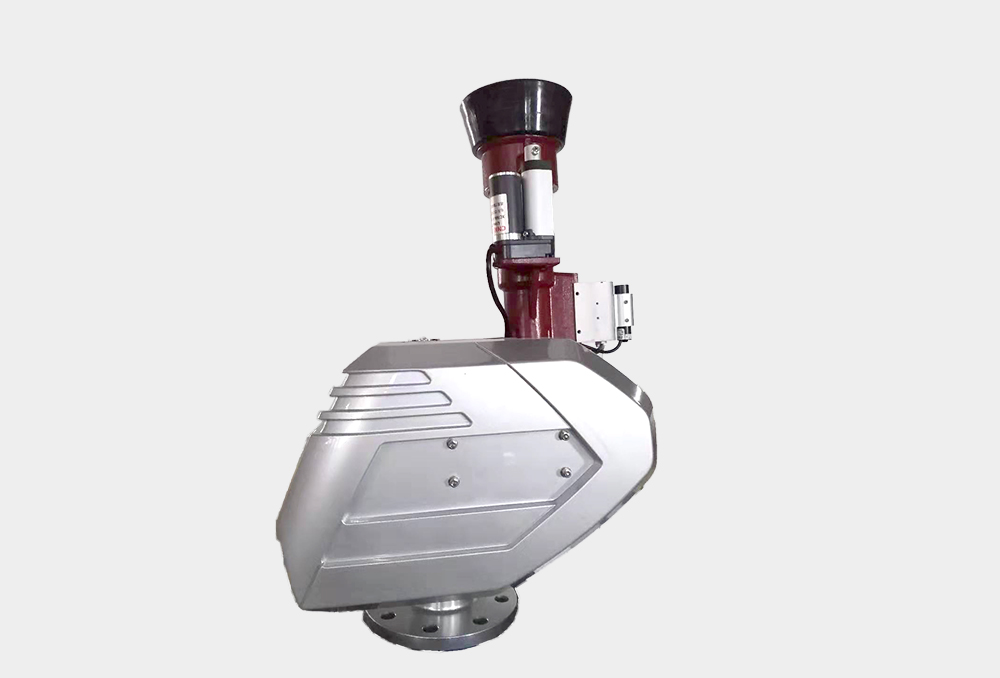

The automatic tracking and positioning jet fire extinguishing device (hereinafter referred to as the jet fire extinguishing device) is a new type of fire protection product applied in large space areas.
It can detect early fires in a timely manner, accurately locate the fire source, and control peripheral equipment to spray water for fire extinguishment, thereby putting out the fire in its infancy.
The jet fire extinguishing device is an electromechanical integrated product with a complex structure and high degree of intelligence.
The jet extinguishing device completes the positioning of the fire source through three-level detectors, ensuring reliable and accurate positioning.
The jet extinguishing device features concentrated water injection, accurate fire suppression, and good effectiveness in extinguishing early-stage fires.
Using dual microcontroller control technology, it boasts stable and reliable performance, along with strong anti-interference capabilities.
The relay contact output mode (normally open, closed during alarm) is adopted, allowing direct control of other devices.
It has multiple working modes, including standalone operation, self-contained system, and integration with other alarm systems, making it widely adaptable.
The jet fire extinguishing device can achieve remote monitoring and control through RS485 bus communication.
It features both manual and automatic control modes, allowing for manual control of equipment rotation and start-stop operations (via a manual control panel or a debugging instrument).
Equipped with a color camera, it can observe the on-site fire situation and the effectiveness of fire extinguishment.
Implementation standard: GB25204-2010 Automatic Tracking and Targeting Water Spray Extinguishing System.

Technical Parameter：

---

Installation height: 8m to 15m;
Weight: 19.5kg
Rated working pressure: 0.8 MPa;
Working pressure range: 0.8~1.2MPa;
Connection interface: flange DN80;
Flow rate (under rated working pressure): 30±8% liters/second
Maximum jet radius: 62 meters;
Maximum protection radius: 55 meters;
Monitoring radius: 60 meters;
Temperature: 4℃～55℃;
Relative humidity: ≤95%, no condensation
Outline dimensions of the fire extinguishing device: 423mm×350mm×352mm;
Water shape: Water column or water mist (optional)
