Functional Features：

---

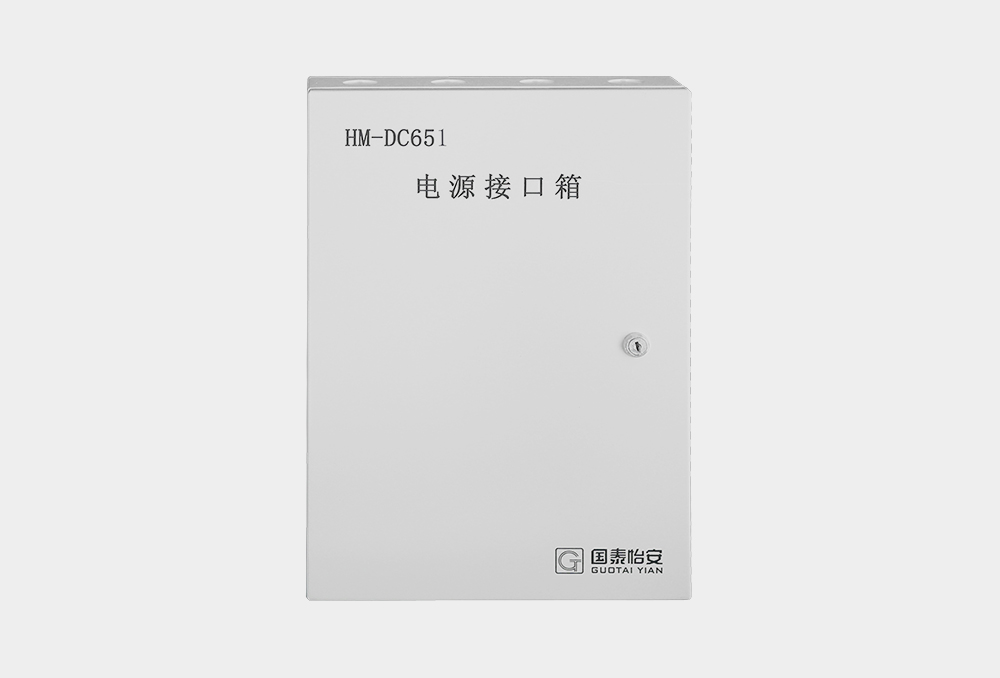

The HM-DC651 water cannon power interface box is a product designed for installation and use with the automatic tracking and positioning water cannons ZS601 and ZS603. It primarily provides the required 24V power for the water cannons and controls the solenoid valves in the water circuit through an expanded intermediate relay. Additionally, it provides connecting terminals and is an essential accessory for the water cannons.
1. It can provide the DC24V power supply required by the water cannon and the controlled AC220V power supply required by the solenoid valve.
2. It can provide the interfaces required for alarm, fault, and RS485 communication of the water cannon.



Technical Parameter：

---

Input voltage: AC220V (+10%, -15%); Output voltage: DC24V
Maximum output current: 2.4A
The power supply has overload and short circuit protection functions.
Contact output capacity: 8A/AC125V (24V)
Output control mode: 2 pairs of normally open passive outputs, 2 pairs of AC220V control outputs
Three pairs of RS-485 communication interface terminals.
Outline dimensions: 265mm×190mm×65mm
Weight: approximately 2.4kg



Usage environment：

---

Temperature: -10℃~55℃
Relative humidity: ≤95%, no condensation
