Functional Features：

---

LCD Chinese character display, featuring two sets of isolated RS485 communication interfaces. RS485-1 is used to connect multiple high-altitude water cannons or large space detectors, enabling.
Equipment inspection and various manual operations; RS485-2 can enable networking between the DK694 host and multiple manual operation panels.
It is equipped with a hardware clock that can record corresponding events that occur at any time, such as fire alarms, malfunctions, and other event information.
It has both manual and automatic functions. In manual mode, the water pump and valve power supply can only be activated after confirming the fire alarm and startup information of the machine. In automatic mode.
In this state, the main power supply for the water pump and solenoid valve will be automatically activated.
It features an alarm input interface. If there is a passive closed contact signal, an alarm will be triggered and the output interface will be linked according to the manual/automatic status, controlling devices such as water pumps, sound and light alarms, etc.
It features an input interface for initiating water cannon inspection and scanning, allowing the horizontal scanning of the water cannon on this machine through external signals.

Technical Parameter：

---

Input voltage: AC220V;
Operating current: 100mA
Operating environment: Temperature: 0℃～40℃;
Relative humidity: ≤95%, no condensation;

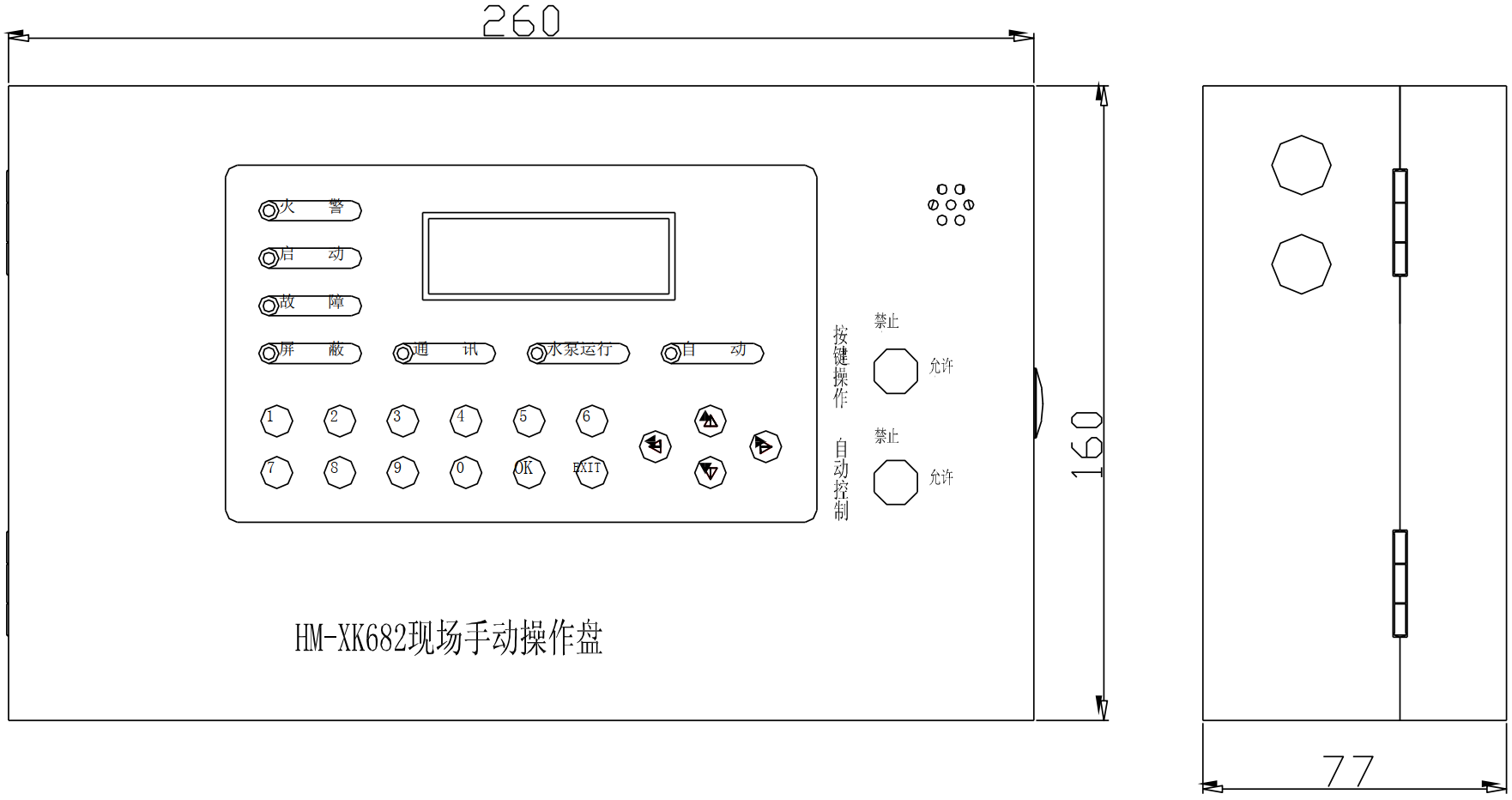

Size specifications: 260mm×160mm×77mm;
