Functional Features：

---

Meet the design and usage requirements of GB17945-2010 "Fire Emergency Lighting and Evacuation Indication System" and GB51309-2018 "Design Standard for Fire Emergency Lighting and Evacuation Indication System";
The outer shell of the lamp is made of high-quality metal, flame-retardant plastic, and flame-retardant materials, and the panel is made of acrylic material;
Adopting high brightness LED light source, low power consumption, uniform light emission, with continuous, strobe, directional and other working modes, and with functions such as inspection, turning on and off lights;
Comes with PSN address code, non-polar two-wire wiring, simple wiring.

Technical Parameter：

---

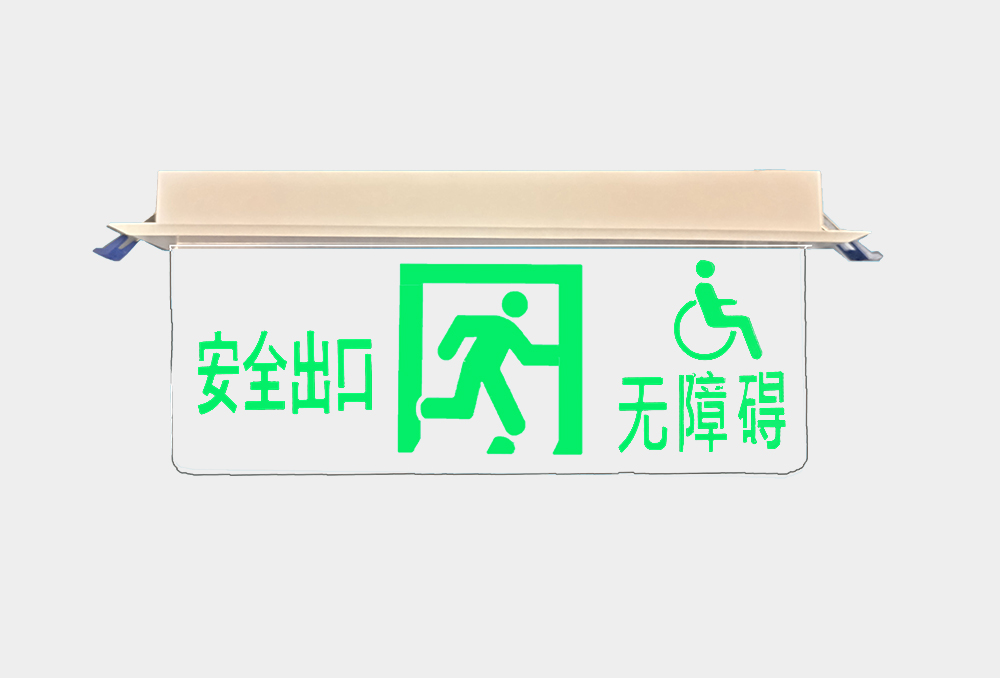

Pattern panel: double-sided safety exit
Panel material: Acrylic
Working voltage: DC18V~DC36V
DC insurance: 0.2A 60V
Protection level: IP30
Emergency transition time:<5s
Light source type: LED
Surface brightness: 50-300 (cd/㎡)
Main power consumption: 1W
Light source specifications: DC3.0V-DC3.2V 0.06W
Emergency time: 90 minutes
Lamp size: 400mm × 162mm × 70mm
Ceiling opening size: 375mm × 55mm
Installation method: Ceiling mounted

Usage environment：

---

Operating temperature: 0 ℃~55 ℃
