Functional Features：

---

Meet the design and usage requirements of GB17945-2010 "Fire Emergency Lighting and Evacuation Indication System" and GB51309-2018 "Design Standard for Fire Emergency Lighting and Evacuation Indication System"; Emergency lighting fixtures are specialized equipment that provide emergency lighting for personnel evacuation, firefighting operations, etc. when the normal lighting power supply fails. They are an important component of modern building fire safety systems. It is powered by a built-in battery or centralized power supply and automatically starts in case of sudden situations such as power outages or fires. It has the following characteristics: high reliability and can operate stably in extreme environments; Significant lighting effect, providing clear and bright illumination, ensuring visible evacuation routes; Capable of quick response, can switch and light up within 0.25 seconds; Flexible installation, adaptable to various methods such as ceiling mounted, wall mounted, embedded, etc; Comprehensively ensure the safe evacuation of personnel and carry out rescue work.

Technical Parameter：

---

Working voltage: DC18V~DC36V
DC insurance: 0.2A 60V
Protection level: IP30
Emergency transition time:<5s
Light source type: LED
Surface brightness: 50-300 (cd/㎡)
Main power consumption: 5W
Light source specifications: DC3.0V-DC3.2V 0.5W
Emergency time: 90 minutes
Luminous flux:>50lm

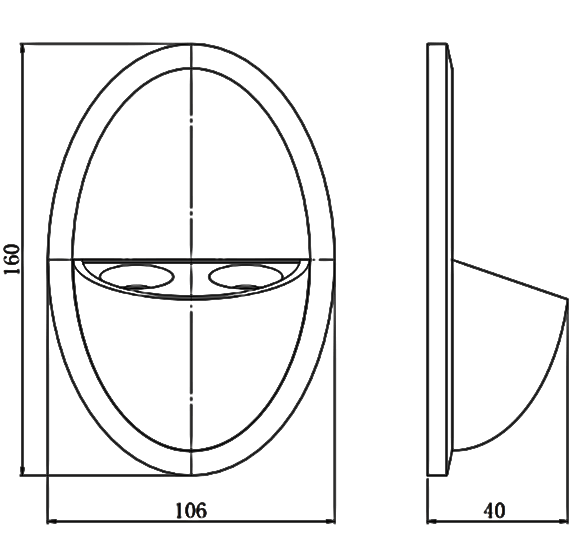

Lamp size: 160mm × 106mm × 40mm
Installation method: Wall mounted

Usage environment：

---

Operating temperature: 0 ℃~55 ℃
