Functional Features：

---

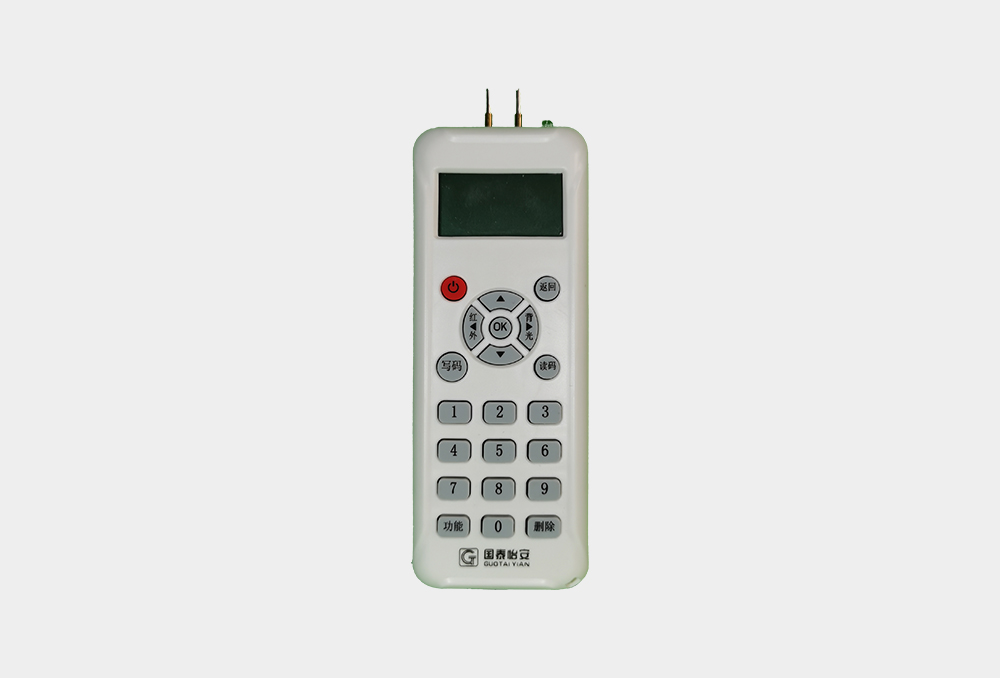

The GS701 electronic encoder (hereinafter referred to as the encoder) is developed and designed based on the requirements of circuit equipment address and PSN code reading and writing on the engineering site. Applied to intelligent evacuation series circuit equipment. LCD display, easy to write addresses, beautiful appearance, and strong compatibility. Equipped with timeout automatic screen shutdown, automatic shutdown, timed lighting function, progressive encoding, and the ability to use Micro USB interface for power supply and other convenient customer functions.

Technical Parameter：

---

Working mode: 3 No. 5 batteries/Micro USB power supply
Working voltage: DC3.6V~5.5V
Static current: ≤ 300 μ A
Working current: ≤ 50mA
Shell protection level: IP30

Usage environment：

---

Environmental temperature: -10 ℃~50 ℃
Relative humidity: ≤ 95% RH (40 ℃± 2 ℃)
