Functional Features：

---

This device is designed to comply with the requirements of GB17945-2010 "Fire Emergency Lighting and Evacuation Indication System";
Automatic communication monitoring function, capable of real-time monitoring of system communication status to ensure reliable operation of the system;
A concise, intuitive, and vivid user graphical display interface that can switch between different device layouts, distinguishing on-site devices and their status events with different graphical displays, making it convenient for users to quickly obtain information;
The system adopts an 18.5-inch LCD screen display with a resolution of 1366 (RGB) × 768, which is clear, intuitive, and easy to operate;
No less than 100000 event records, accurately and fully recording system status events;
Multiple operation modes to avoid operational issues when external USB devices encounter problems;
Using USB flash drive for engineering import and backup function, simple and fast;
Complete personnel handover function, capable of recording and storing information of on duty personnel;
Set administrator password to prevent personnel from bypassing their level of authority;
High decibel speakers can quickly alert users.

Technical Parameter：

---

Operating System: Linux+QT
Memory: 1GB
CPU: ARM A7 quad core
Hard drive: 8GB
Display screen: 18.5-inch TFT-LCD, 1366 (RGB) x 768 high-resolution
Input voltage: AC220V ± 25% 50Hz
Working current: 0.7A (DC24V)
Alarm sound intensity: 65 dB~115dB in front (1m)
Protection level: IP30

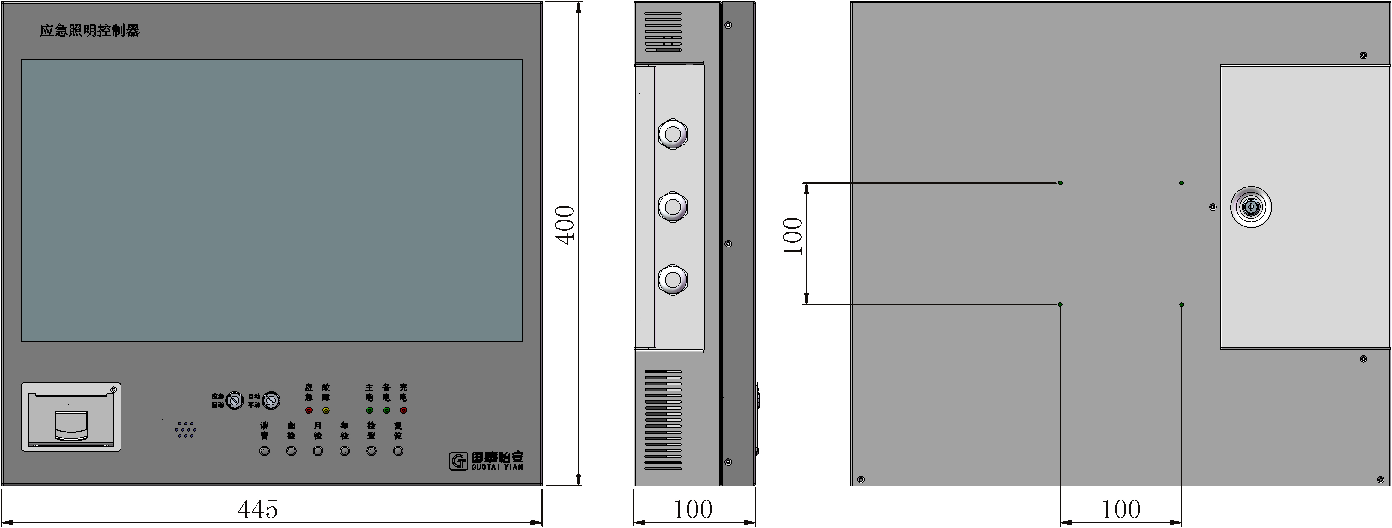

Dimensions: L445mm × W100mm × H400mm
Installation method: wall mounted, cabinet mounted

Usage environment：

---

Operating environment: Temperature range of -10 ℃ to+50 ℃;
Relative humidity: ≤ 95% (40 ℃)
