Functional Features：

---

It can be widely used in various densely populated places such as factories, schools, hospitals, shopping malls, hotels, theaters, sports centers, transportation hubs, exhibition halls, office buildings, etc;
It can be networked with our company's fire alarm controllers, fire linkage controllers, etc. to form a fully functional emergency lighting and evacuation indication system.
Automatic communication monitoring function, capable of real-time monitoring of system communication status to ensure reliable operation of the system;
Dot matrix LCD display and fault sound and light alarm, easy and convenient to maintain;
Automatic instant switching, unmanned operation;
Silent, pollution-free, pollution-free, and energy-efficient, with minimal power consumption when not powered by emergency equipment;
Reliable quality, the best cost-effectiveness among similar products, and complete protection function;
Strong overload capacity and complete protection function;
This device is designed to comply with the requirements of GB17945-2010 "Fire Emergency Lighting and Evacuation Indication System".

Technical Parameter：

---

Input voltage: AC220V ± 25% 50Hz
Output voltage: DC18V~DC36V
Main power consumption: 20W
Output power: 8 circuits, total power 600W
Charging method: automatic switching between uniform charging and float charging
Emergency switch: ≤ 5 seconds
Emergency time: ≥ 90 minutes
Charging time: ≤ 24 hours
Rated voltage: DC18V~DC36V
Battery type: Valve regulated sealed lead-acid battery
Battery model: JP-6-FM-38
Single section capacity: 12V/38Ah
Number of batteries: 3 cells/set

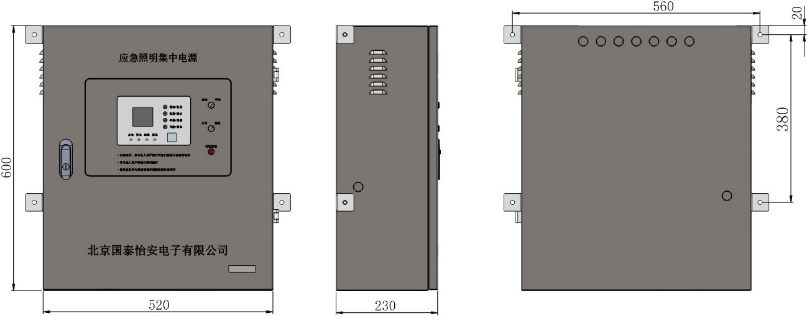

Dimensions: H600mm × L520mm × W230mm
Protection level: IP33
Installation method: wall mounted or floor mounted

Usage environment：

---

Operating environment: Temperature range of 0 ℃ to+55 ℃;
Relative humidity: ≤ 95%
