Functional Features：

---

Monitor three-phase voltage and current, monitor three voltage and two current channels, with high accuracy and an error of ≤ 5%. Real time monitoring of the working status of the main and backup power sources of fire-fighting equipment. Real time monitoring of power overvoltage, undervoltage, phase loss, power interruption and other faults in fire equipment, and reporting of fault information to the monitor.

Technical Parameter：

---

Voltage detection range: Voltage: AC187V~242V
Working voltage: DC24V
Working current: Normal monitoring current ≤ 1ma, alarm bus current ≤ 1.5mA (full load test)

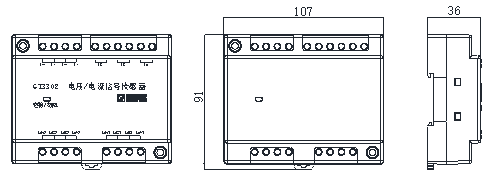

Dimensions: L107mm × W88mm × H36mm

Usage environment：

---

Usage environment: Working temperature: -10 ℃~55 ℃
Relative humidity: ≤ 95% RH (non condensing)
