Functional Features：

---

Connect sensor modules to monitor the power status of firefighting equipment; Effective power supply and communication can be provided for local area partitioning, with a maximum of 200 sensor module communication data uploaded to the anti device power status monitor via CAN bus.

1. Upload your own work status for unified management of the fire equipment power status monitor;
2. Extend the power supply distance between the fire equipment power status monitor and the sensor to ensure stable and reliable system power supply; 3. Extend the communication distance of the fire equipment power status monitor and expand the number of management sensors to form a more complete and stable monitoring network: 4. The built-in backup power supply can work for 8 hours, and the main and backup power supplies automatically switch, effectively ensuring the reliable operation of the system.

Technical Parameter：

---

Input power supply: AC 220V 50HZ; Input power: ≤ 150W;
Output circuit and communication capacity: 1 (4 groups) two bus communication,<200 sensor modules
Bus communication: CAN bus, dual bus
Communication distance:<1000m;
Protection level: IP30;
Altitude:<4500m;
Installation method: Wall mounted.

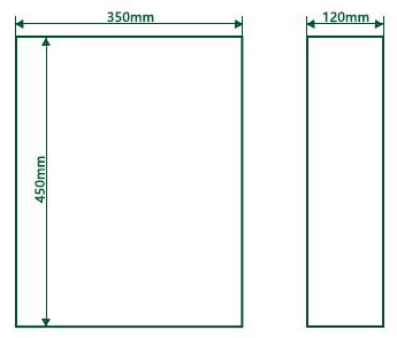

Dimensions: 450mm x 350mm x 120mm

Usage environment：

---

Environmental temperature: -10 ℃~50 ℃
Relative humidity: ≤ 95% RH (40 ℃± 2 ℃)
