Functional Features：

---

The fire equipment power monitoring system is a system developed by Beijing Guotai Yian Electronics Co., Ltd. based on the Chinese national standard GB28184-2011, specifically designed for real-time detection of the main and backup power sources of the other party's equipment, in order to determine the real-time monitoring of the power supply of the fire equipment. The system uses sensors to eliminate faults such as overvoltage, undervoltage, overcurrent, phase loss, and power interruption.
The fire equipment power monitoring system consists of some or all equipment such as fire equipment power status monitors (hereinafter referred to as monitors), voltage signal sensors, voltage/current signal sensors, etc. It is an indoor equipment.

Wall mounted, two-wire system, 1-circuit, with 255 address points, expandable to 2-circuit, supporting a maximum of 510 address points; 3.5-inch color TFT LCD display; Support self-organizing network for 255 fire equipment power status monitors, and support networking with G7 series alarm hosts; Equipped with primary and backup power, output current of 1.5A; comes with a built-in printer.

Technical Parameter：

---

Working voltage: Main power 220VAC 50Hz
Host load capacity: ≤ 510 points
Maximum historical records: 10240
Monitor networking distance: 3000 meters
Number of monitor network connections: ≤ 255
External power output: DC24V, 1.5A
Sound and light alarm: DC24V, 0.2A
Backup power DC24V: 255/128/64 point 12V/2.3Ah/section, 510 point: 12V/4.5Ah/section

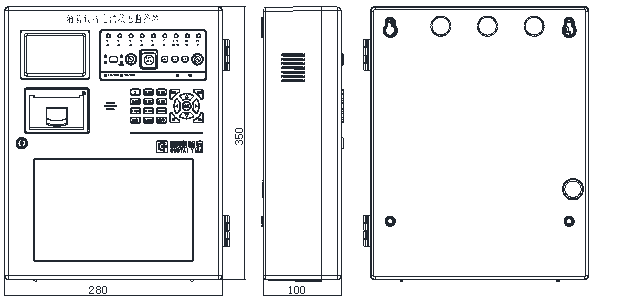

Dimensions: L280mm × W100mm × H350mm
Protection level: IP30
Environmental requirements: Indoor

Usage environment：

---

Working environment temperature: 0-40 ℃
Storage temperature: -10 to+50 ℃,
Relative humidity: ≤ 95% (40 ℃)
