Functional Features：

---

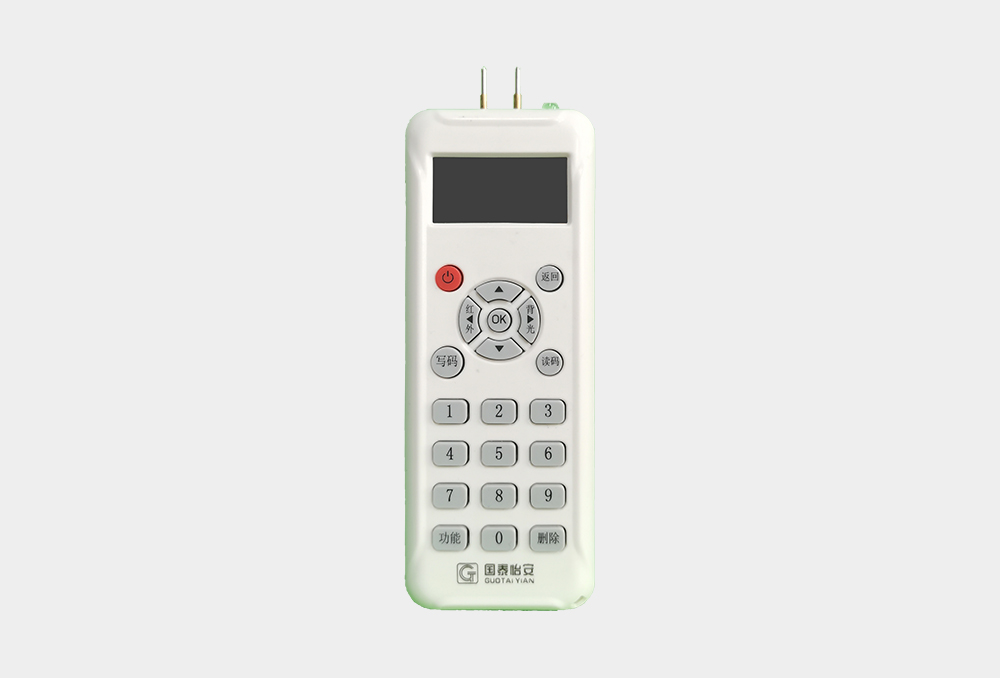

The GS701 electronic encoder (hereinafter referred to as encoder) is developed and designed according to the read-write requirements of the project site for the address, sensitivity and type of loop equipment. It is compatible with the G6, G7, electrical fire, fire door, Residual pressure monitoring , power monitor series loop equipment. By adopting the LCD, the encoder is easy to write address, and the appearance is aesthetically pleasing. The encoder has convenient functions for customers, such as automatic screen-off and automatic shutdown after timeout, progressive encoding for the timed lighting function, and the ability to be powered via the Micro-USB interface.

Technical Parameter：

---

work mode: Powered by three AA batteries or Micro-USB

Operating voltage: DC3.6V~5.5V

Quiescent current: ≤300μA

Current: ≤50mA

Degree of protection provided by enclosure:IP30

Usage environment：

---

Ambient temperature:－10℃～50℃

Relative humidity: ≤95%RH（40℃±2℃）
