Functional Features：

---

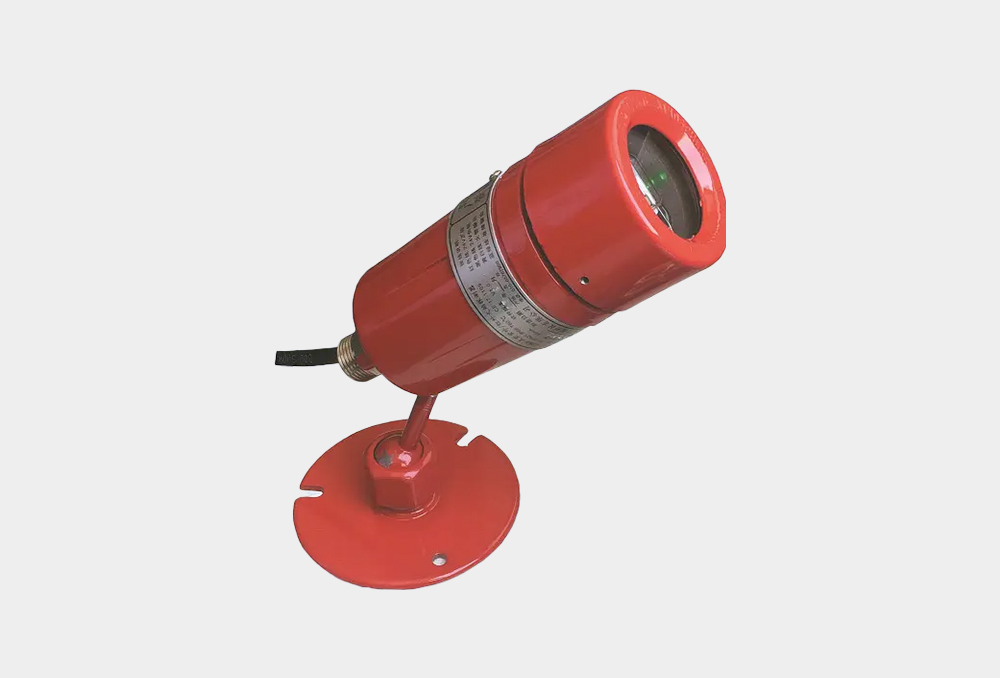

The explosion-proof ultraviolet flame detector is used in conjunction with the GM713/GM718/GM718B input/output modules and connected to the G7 system bus. Used for indoor and outdoor installation and use in explosion-proof environments. High sensitivity, short response time, UV lenses are not affected by sunlight and ordinary lighting, and have strong anti-interference ability.

Technical Parameter：

---

Working voltage: 20-35V
Static working current: 18mA ± 5mA
Alarm state current: 32mA ± 5mA
Response time: 0.5-10 seconds
Fire sensitivity: capable of responding at a distance of 1m to 40m. (Flame height: 0.1m~1.3m flame)
Detection angle: ≤ 100 °
Rotation angle: 360 °
Pitch angle: 90 °
Explosion proof mark: Exd Ⅱ CT6

Usage environment：

---

Environmental temperature: -35~85 ℃
Relative humidity: ≤ 98% RH (45 ± 2 ℃)
Protection level: IP66
