Functional Features：

---

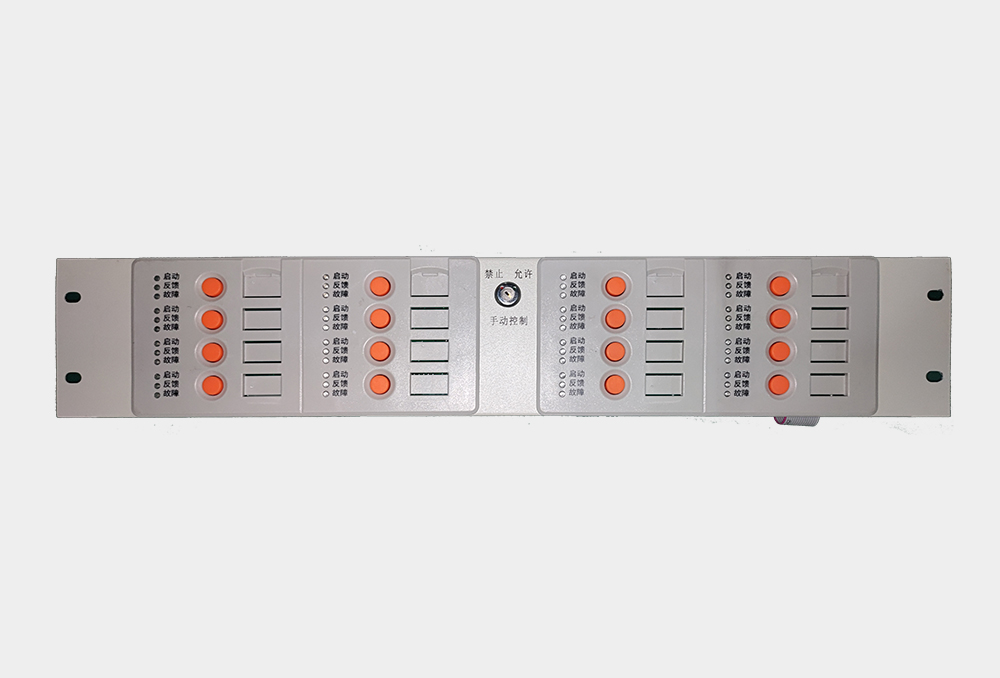

The GK741 multi-line linkage control panel is applied to the G7 fire alarm system series. It performs real-time communication with the controller through a CAN communication bus, and realizes automatic start through controller programming. Each panel is provided with 8 circuits (wall-mounted)/16 circuits of (cabinet unit and console unit) output. The two-wire system is adopted to connect the interface GM653 of the field linkage panel to control the start and stop of fans and pump equipment in the site. The control panel is also used to display the action confirmation signal of the equipment. When the controller of GK741 multi-line linkage control panel fails to work, the manual function can still realize the start and stop of the equipment.

Technical Parameter：

---

Operating voltage: DC24V

Quiescent operating current: ≤130Ma

Maximum operating current: ≤360mA

Overall dimensions: 482.6mm×88.1mm（2U）

Usage environment：

---

Ambient temperature: 0℃～40℃

Relative humidity: ≤95%RH（40℃±2℃）
