Functional Features：

---

The GK716 fire alarm controller is used in a small fire automatic alarm system. It uses a 320×480 dot matrix color large-screen LCD to display, which is convenient and intuitive to operate. The controller has the maximum capacity of 128 bus-based alarm linkage control points and 3 circuits of multi-line control points. The black box function can save 10240 event records, and the miniature thermal printer can realize the real-time event printing function.

Technical Parameter：

---

Main power: AC187V-AC242V,50Hz；

Standby power: DC12.8V

backup battery: 3.2V/ Lithium 4500mAh 4 batteries

external power output: 0.7A，24 VDC

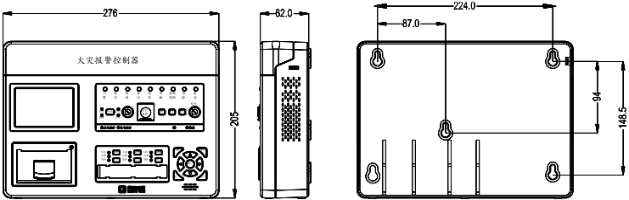

Overall dimensions(Unit：mm) : L276mm×W62mm×H205mm

Degree of protection: IP30

Usage environment：

---

Ambient temperature: 0～40 ℃

storage temperature: –10 ～+50 ℃

Relative humidity: ≤95%（40℃）
