Functional Features：

---

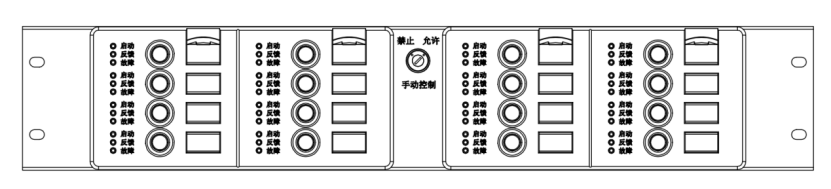

GK741 multi line linkage control panel, applied to G7 series fire alarm system, communicates in real-time with the controller through CAN communication bus, and automatically starts through controller programming; Each disc comes with 8 channels (wall mounted)/16 channels (cabinet mounted, piano mounted) output; Using a two-wire system to connect the on-site linkage panel interface GM653, control the start and stop of on-site fan and pump equipment. And display the device action confirmation signal. The GK741 multi line linkage control panel can still achieve manual start and stop operations of the equipment even when the controller cannot work.

Technical Parameter：

---

Working voltage: DC24V
Static working current: ≤ 130mA;
Maximum operating current: ≤ 360mA
Dimensions: 482.6mm × 88.1mm (2U)

Usage environment：

---

Environmental temperature: 0 ℃~40 ℃
Relative humidity: ≤ 95% RH (40 ℃± 2 ℃)
