Functional Features：

---

The GK732 fire control room graphic display device uses RS485 bus, fire alarm controller, fire linkage controller, etc. for networking. The equipment adopts an embedded operating system. With the 18.5-inch LCD screen display and ten-point capacitive touch input, the device has the characteristics of strong function, high reliability, flexible operation, etc., supporting Ethernet and 4G communications. By adopting the USB flash disk for engineering import and backup functions, the device is simple and fast to operate. With a built-in structure, the device supports the modes of wall-mounted, cabinet, single-console and double-console.

Technical Parameter：

---

Main power: AC187~242V，50Hz；

Installation methods: standalone, wall-mounted, freestanding cabinet, piano stand (single or double) are all acceptable.

operating system: Linux+QT

Display screen: 18.5-inch TFT-LCD, high resolution of 1366(RGB) x 768

Memory: 1GB

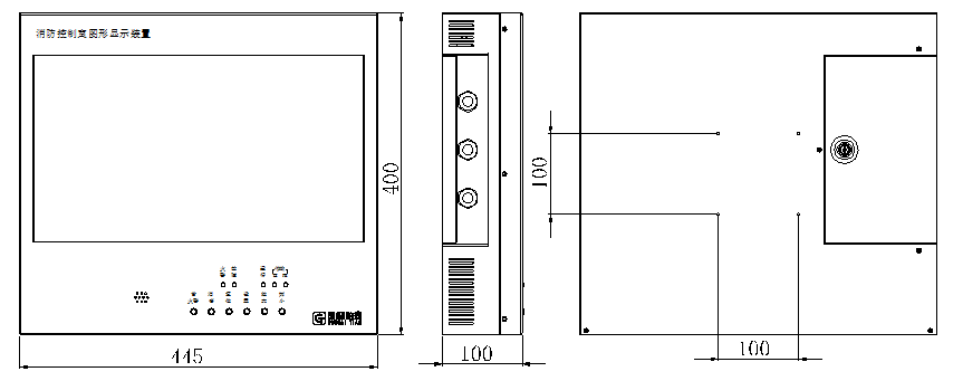

Dimensions: (unit: mm) 445×100×400 (length×width×height)

CPU: ARM Cortex-A7 quad-core

USB interface: 4

RS485 interface: 2

Ethernet interface: 1

RS232 interface：1

Environmental requirements: indoor

Degree of protection: IP30
