Functional Features：

---

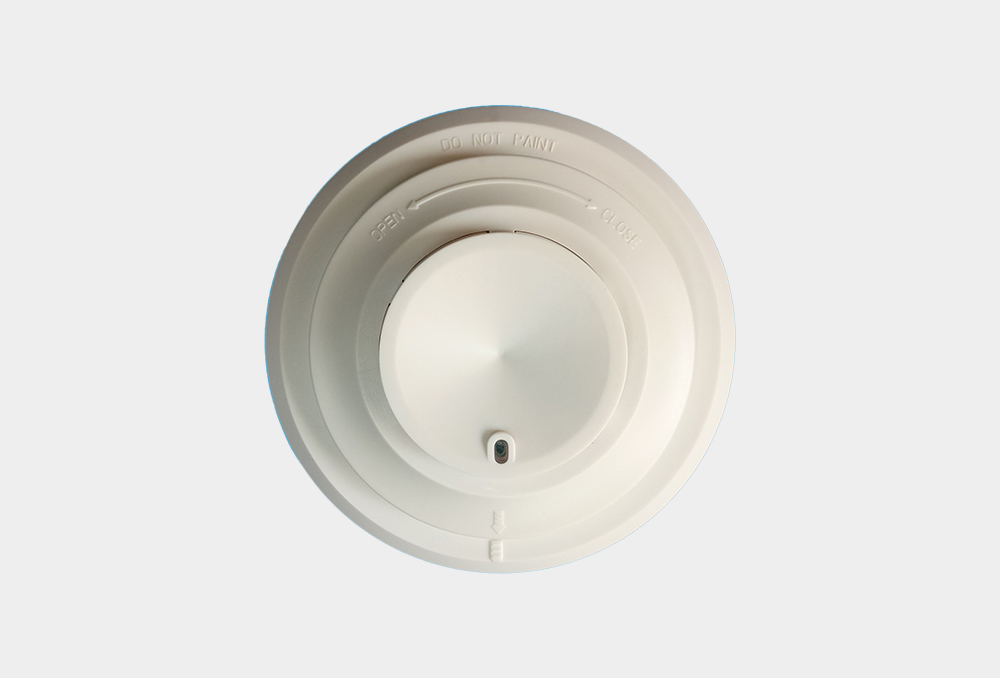

It is applied to G7 fire alarm system series. The detector is ultra-thin and aesthetically pleasing. By adopting the built-in CPU intelligent algorithm, the detector has the function of analyzing true and false fires. Since all components are surface-mounted, the detector has strong moisture resistance. The detector can automatically adjust the sensitivity and has a learning mode and a self-diagnosis function. The detector is encoded with the GS701 electronic encoder, occupying one address (1~255). The detector needs to be used with the GT720 base, and the bus is non-polar. It can be used as a non-coding detector, with the relay module GM715 connected.

Technical Parameter：

---

Operating voltage: DC15V-28V pulse voltage

Quiescent current: ≤0.6mA

Alarm current: ≤1.2mA

Overall dimensions: Φ100mm×H32mm (including base)

Degree of protection provided by enclosure: IP30



Usage environment：

---



Ambient temperature: -10°C~+55℃

Relative humidity: ≤95%RH
