Functional Features：

---

Meet the design and usage requirements of GB17945-2010 "Fire Emergency Lighting and Evacuation Indication System" and GB51309-2018 "Design Standard for Fire Emergency Lighting and Evacuation Indication System";
The outer shell of the lamp is assembled from high-quality metal, flame-retardant plastic, and flame-retardant materials;
Using high brightness LED beads, low power consumption, and uniform light emission;
Non polarized two-wire wiring, simple wiring, low failure rate.

Technical Parameter：

---

Shell material: stainless steel
Panel Material: Glass
Working voltage: DC18V~DC36V
DC insurance: 0.2A 60V
Protection level: IP67
Emergency transition time:<5s
Light source type: LED
Surface brightness: 50-300 (cd/㎡)
Main power consumption: 1W
Light source specifications: DC3.0V-DC3.2V 0.06W
Emergency time: 90 minutes

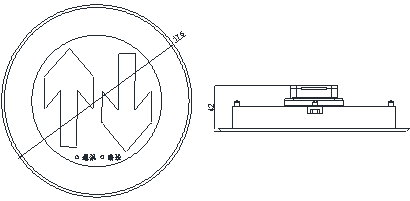

Lamp size: φ 175mm × H42mm
Ground pre embedded pit size: Ø 160mm, depth 50mm

Usage environment：

---

Operating temperature: 0 ℃~55 ℃
Installation method: buried type
