Functional Features：

---

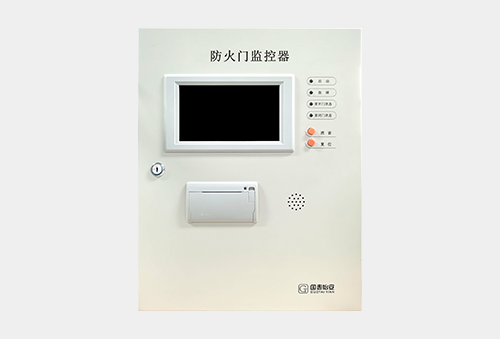

The GT-FHK7001 fire door monitor monitors the opening and closing status of fire doors in real time through sensors, and detects fire door faults; And the function of automatically closing the fire door through a door closer to isolate the fire source in case of a fire.
The GT-FHK7001 fire door monitor is connected to the fire door monitoring module, door magnetic switch, and electric door closer to form a monitoring and protection system.
The GT-FHK7001 fire door monitor monitors the opening, closing, and fault status of all fire doors, displays and records the location, type, and time of the fault on the fire door monitor, and emits sound and light alarm signals; Once a fire occurs, the monitor will immediately close the corresponding fire doors, isolate the fire area, and effectively protect personal and property safety.
The GT-FHK7001 fire door monitor has a 7-inch large LCD screen and a fully Chinese touch based human-machine interaction interface, which is easy to operate; Small in size, space saving, and easy to install; The GT-FHK7001 fire door monitor has strong scalability, with a total of 4 circuits, each of which can connect 200 monitoring modules or door magnetic switches
The minimum capacity of the host is 200 points, and the maximum capacity is 3200 points, meeting various on-site needs. The maximum compatible extension is 15 units, and the CAN communication distance is up to 1500 meters.

Technical Parameter：

---

Input voltage: AC220V/50HZ
Input power: 150W;
Output voltage: DC24V
Output current: 5A;
Backup power: DC24V 7Ah
Machine consumption: Monitoring status<17W, alarm status<18W
Load capacity: 200, 800, 1600, 2400, 3200
Appearance dimensions: 350mm × 450mm × 120mm

Usage environment：

---

Temperature: -10 ℃~50 ℃
Relative humidity:<95% RH (40 ℃± 2 ℃)
