Functional Features：

---

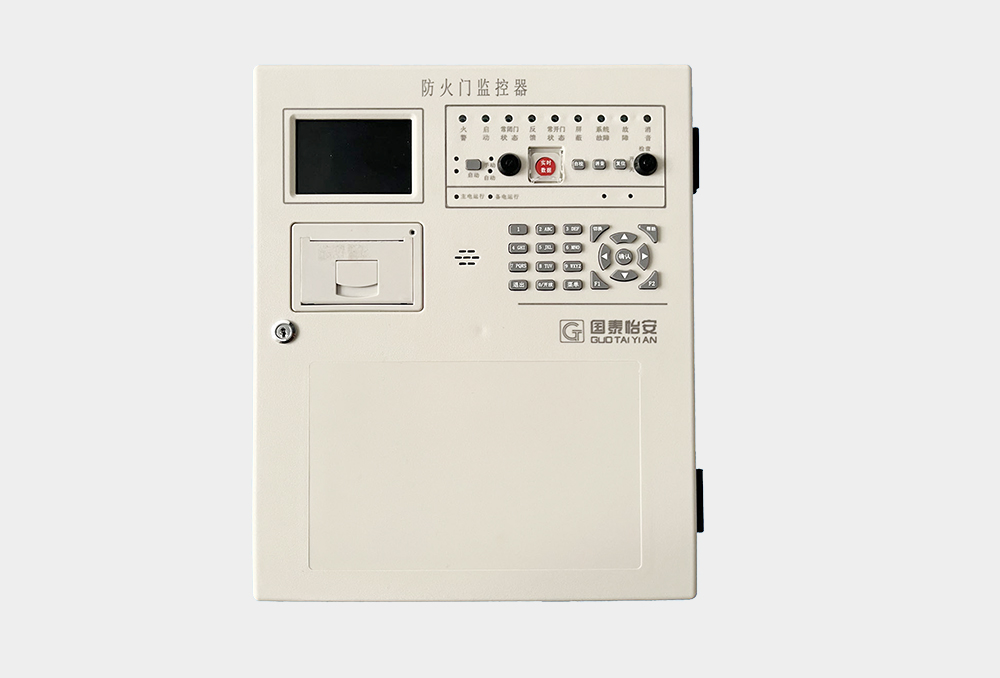

This monitor design complies with the requirements of GB 29364-2012 "Fire Door Monitor";
The system adopts a 320x480 dot matrix color screen LCD display, which is clear, intuitive, and easy to operate;
Three level programming password protection, compatible with password levels downwards, suitable for operations by different categories of personnel;
10240 event records, accurately and fully recording system status events;
You can use keyboard programming or offline programming with a computer through a USB interface, or download programming data or upgrade software using a USB flash drive;
Micro thermal printer realizes real-time event printing function;
Rich matrix control functions make programming more efficient and flexible;
It has real-time operation prompts and can display geographic location information for easy operation and management;
Can carry 5 bus circuits, with 200 addressing points per circuit;
The automatic login function of circuit components enables intelligent and fast online access of circuit components;
Powerful network control function, allowing cross machine control or operation of some settings between monitors

Technical Parameter：

---

Working voltage: Main power AC187~242V, 50Hz; Backup power DC: 24V
External power output: 1A, 24 VDC
Maximum number of installed circuit cards: 5
Maximum load capacity: 1000
Backup battery: 12V/4.5Ah/cell, 2 cells
LCD display screen: Color LCD, 320 × 480, backlit
Maximum historical records: 10240
Maximum alarm records: 4096
Maximum distance for monitor networking: 3000 meters (add 1 bridge for every additional 3000 meters)
Maximum number of connections in the monitor network: 255 units
USB interface: MICRO type, 1, connect to computer, download and upload data
USB interface: 1, for downloading data and upgrading software
CAN interface: 2, CAN1 is used for monitor networking; CAN2 is used to connect other types of fire protection products
RS485 interface: 1
Dimensions (unit: mm) Host: L280mm × W100mm × H350mm

Usage environment：

---

Environmental temperature: 0-40 ℃
Storage temperature: -10 to+50 ℃
Relative humidity: ≤ 95% (40 ℃)
Protection level: IP30
Environmental requirements: Indoor
