Functional Features：

---

Provide current signals to the voltage and current sensor, and connect the current port of the voltage and current sensor. Rated input: 0-1000A (different current sizes for different models), single-phase (regardless of direction) when wired. Transformers do not need to distinguish polarity and can be directly connected to voltage and current signal sensors.

Technical Parameter：

---

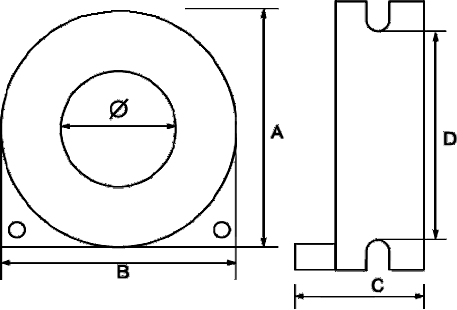

Dimensions(mm)
Rated input current	Ф	A	B	C
100A	26mm	48.5	51.5	28.5
400A	26mm	48.5	51.5	28.5
600A	45mm	77	77	35
1000A	60mm	94	95	23

Voltage resistance: 3000V/Min
Rated output current: 100mA
Insulation strength: 500M Ω/500V/Min
Accuracy level: 0.5 level
Linearity:<3%
Rated input current: 100A/400A/600A/1000A optional
Mutual inductance ratio: 100A: 100mA
Shell material: flame retardant PC/flame retardant ABS
Encapsulation: Internally encapsulated with epoxy resin or isotropic material

Usage environment：

---

Working temperature: -12 ℃ to+45 ℃
