Functional Features：

---

Provide current signals to the voltage and current sensor, and connect the current port of the voltage and current sensor. Rated input: 0-1000A (different current sizes for different models), single-phase (regardless of direction) when wired. Transformers do not need to distinguish polarity and can be directly connected to voltage and current signal sensors.

Technical Parameter：

---

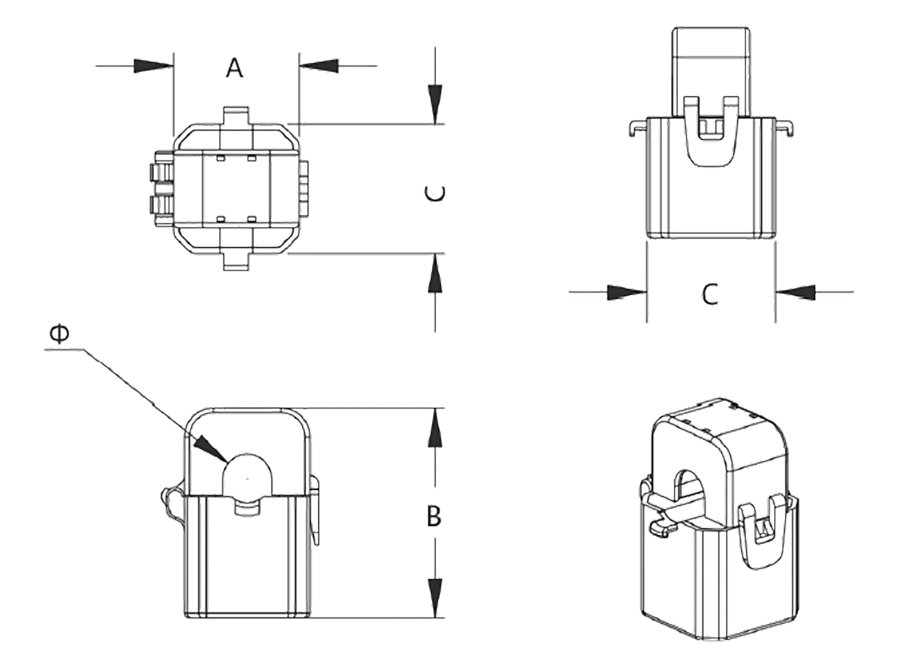

Dimensions(mm)
Rated input current	Ф	A	B	C
100A	16mm	31	50	30
400A	23mm	43	73	39
600A	35mm	60	89	43
1000A	50mm	81.2	119.8	58

Voltage resistance: 3000V/Min
Rated output current: 100mA
Insulation strength: 500M Ω/500V/Min
Accuracy level: 0.5 level
Working temperature: -12 ℃ to+45 ℃
Linearity:<3%
Rated input current: 100A/400A/600A/1000A optional
Mutual inductance ratio: 100:0.1
Shell material: flame retardant PC/flame retardant ABS
Core material: Silicon steel
