Functional Features：

---

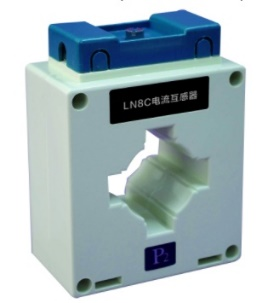

Provide current signals to the voltage and current sensor, and connect the current port of the voltage and current sensor. Rated input: 0-1000A (different models with different current sizes). Four models are available: 75A, 100A, 400A, and 1000A. Wiring method: single-phase (direction cannot be wrong).

Technical Parameter：

---

Current ratio: 100:5
Number of through turns: 1
Accuracy: 0.5
Rated voltage: 0.66KV
Wiring method: single-phase (direction cannot be wrong)
75A size: circular ф 22, external dimensions: L60mm x H68mm x W36mm
100A size: circular ф 23, external dimensions: L60mm x H68mm x W36mm
400A size: circular ф 23, external dimensions: L60mm x H68mm x W36mm
1000A size: round ф 36, external dimensions: L83mm x H83mm x W44mm
