Functional Features：

---

The system meets the national standard GB16806-2006 for fire linkage control system and adopts a 128x64 dot matrix black and white LCD display, which is clear, intuitive and easy to operate; Three level programming password protection, compatible with password levels downwards, suitable for operations by different categories of personnel; 10240 event records, accurately and fully recording the system status and manual startup function of events, facilitating the verification of equipment startup configuration; Communicate with the residual voltage monitor through the loop two bus. The automatic login function of circuit components enables the intelligent and fast external fan status collector to monitor the real-time operation status of the fan when the circuit components are online

Technical Parameter：

---

Detector capacity: 64
Working voltage: Main power AC187-242V, 50Hz
Display screen: black and white, 128x64, backlit
Maximum historical records: 10240
Maximum alarm records: 4096
Controller circuit communication distance: 1500 meters (additional circuit repeater installed for distances exceeding 1500 meters)

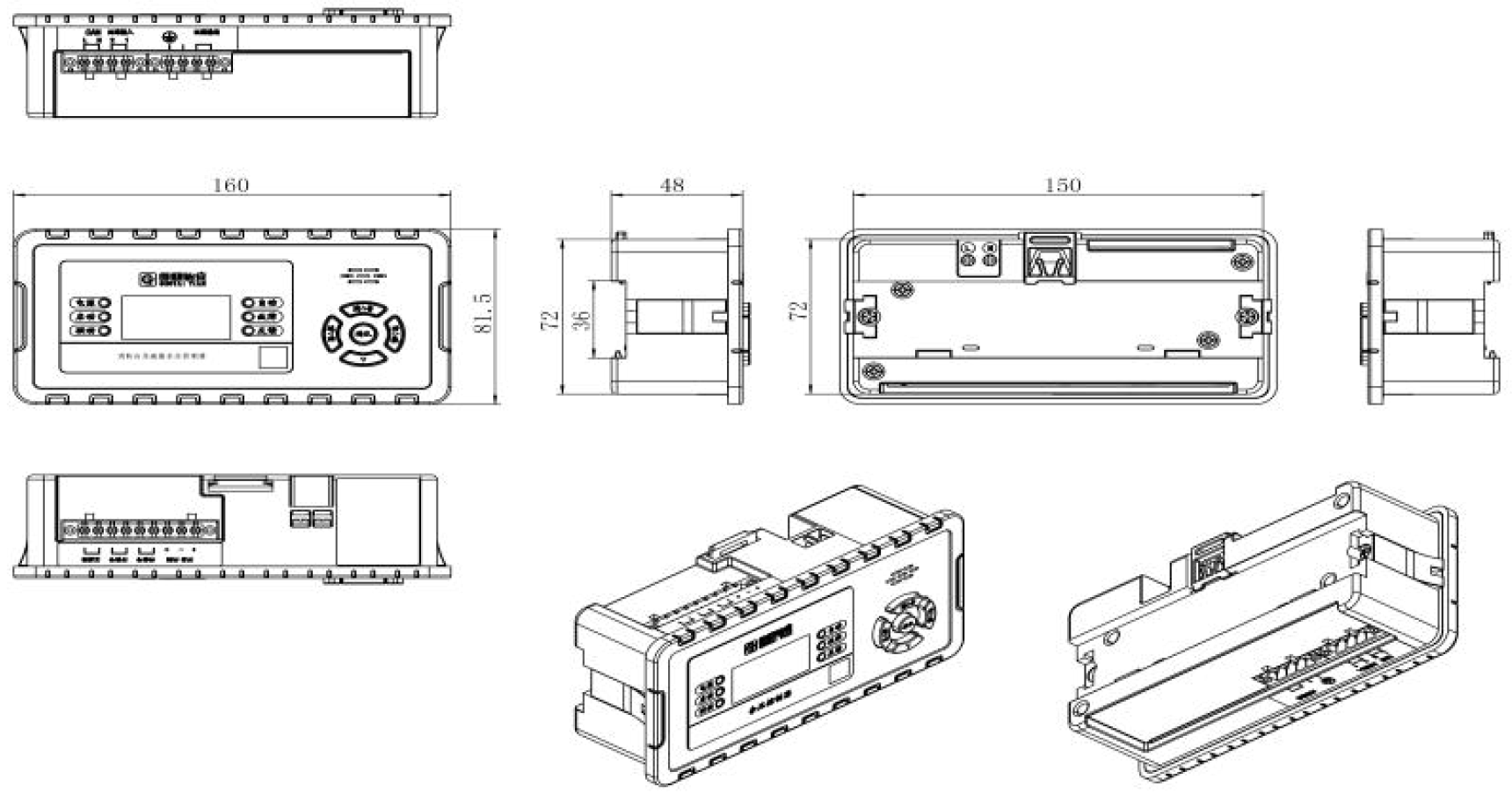

Dimensions: L160mmxW82mmxH48mm
Protection level: IP30
Environmental requirements: Indoor

Usage environment：

---

Environmental temperature: 0-40 ℃
Storage temperature: -10~+50 ℃
Relative humidity:<95% (40 ℃)
