Functional Features：

---

Applied to the G7 series fire alarm system. Adopting a 320x240 color LCD display with full Chinese character operation and prompt interface, coupled with a GPRS module, the controller can achieve remote alarm and other functions when detecting a fire alarm. It can be connected to household smoke detectors and can also be used as a field device to connect with G7 controllers. Up to 16 detectors can be carried, with a total of 16 addressing points and one output function.

Technical Parameter：

---

Relative humidity: ≤ 95% (40 ℃)
DC backup power: 3.7V lithium battery 4400mA
AC main power: AC220V 180V~250V 50 ± 1% Hz
Static current:<60mA

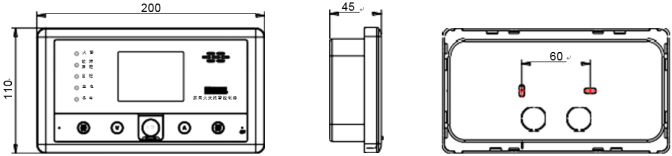

Dimensions: L200mm × W110mm × H45mm

Usage environment：

---

Maximum operating current:<100mA (AC 220V)
Working environment temperature: 0 ℃~40 ℃
