Functional Features：

---

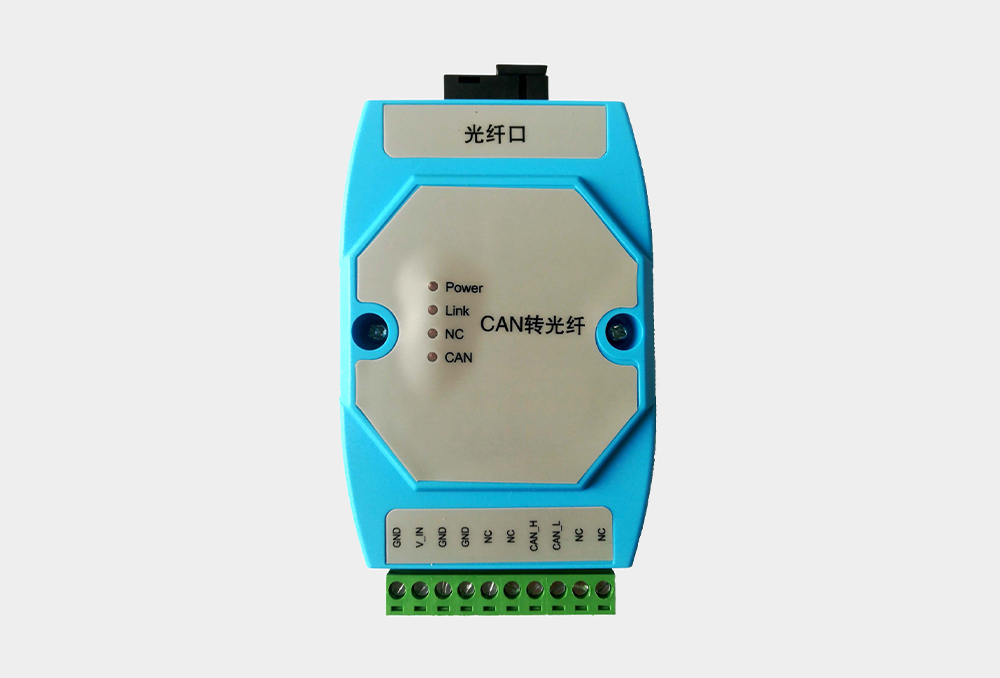

MS-F155-C is a module that converts CAN bus to fiber optic, which can extend the communication distance of CANbus up to 20 to 40 kilometers. Using optical signal transmission, the module has excellent resistance to electromagnetic interference. The dedicated fiber optic communication chip design circuit ensures stable and reliable data communication, and can be used in harsh industrial and mining environments. The maximum transmission rate of CAN signals is 500Kbps, and lightning protection and anti-static circuits are designed to provide excellent EMI/RFT characteristics. The CAN interface adopts zero delay conversion time technology and flow control technology that automatically detects data flow, making the module very easy to use. The two CAN bus interfaces work completely independently of each other and do not interfere with each other.

Technical Parameter：

---

Working voltage: DC7-36V
Transmission rate: CAN can reach 500Kbps
Communication speed:<500Kbps
Communication distance: Single mode 20-40KM, multi-mode within 2KM
Fiber optic usage: point-to-point

Usage environment：

---

Temperature: -40 ℃~60 ℃
Humidity: -40~60 ° C~90% (no condensation)
